XM4200H/VCC/G

ASL XM4200H/VCC/G - analog short-arc lamp.

Replacement for LTI LTIX-4200W-HC, Christie CXL-4200

Warranty/Life

Warranty: 1350h

Technical specification

Power (W) - 4200
Rated Current (A.D.C.) - 140
Voltage (V.D.C.) - 30
Current Control Range (A.D.C.) - 80-150
Average Lumen Output (Lm) - 166000
Burning Position - H±20° V±20°
Forced Air Cooling (m/sec.) - 10-13

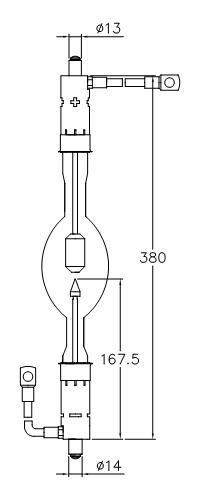

Anode (+) Base Ø - Pin Ø or Thread (mm) - 27-13
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 27-14

Cross Reference

LTI - LTIX-4200W-HC
Christie - CXL-4200

XM4200H/VCC/G replacement for LTIX-4200W-HC, CXL-4200
