XM4000HTP/G

ASL XM4000HTP/G - analog short-arc lamp.

Replacement for LTI LTIX-4000W-HTP, OSRAM XBO 4000W/HTP OFR, Christie CXL-40, USHIO UXL-4000HA, Yumex YXL-40, Superior Quartz SX4000HTP

Warranty/Life

Warranty: 1400h

Technical specification

Power (W) - 4000
Rated Current (A.D.C.) - 130
Voltage (V.D.C.) - 31
Current Control Range (A.D.C.) - 100-140
Average Lumen Output (Lm) - 155000
Burning Position - H±20° V±20°
Forced Air Cooling (m/sec.) - 10-13

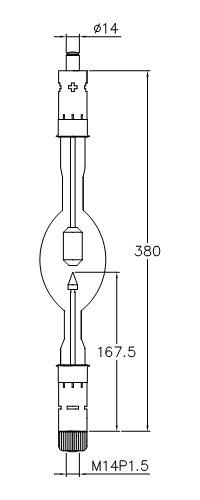

Anode (+) Base Ø - Pin Ø or Thread (mm) - 28-14
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 28-M14P1.5

Cross Reference

LTI - LTIX-4000W-HTP
OSRAM - XBO 4000W/HTP OFR
Christie - CXL-40
USHIO - UXL-4000HA
Yumex - YXL-40
Superior Quartz - SX4000HTP

XM4000HTP/G replacement for LTIX-4000W-HTP, XBO 4000W/HTP OFR, CXL-40, UXL-4000HA, YXL-40, SX4000HTP

Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
