XM4000-7HS/G

ASL XM4000-7HS/G - analog short-arc lamp.

Replacement for LTI LTIX-4000W-XT

Warranty/Life

Warranty: 800h

Technical specification

Power (W) - 4000
Rated Current (A.D.C.) - 130
Voltage (V.D.C.) - 31
Current Control Range (A.D.C.) - 100-140
Average Lumen Output (Lm) - 155000
Burning Position - H±20° V±20°
Forced Air Cooling (m/sec.) - 10-13

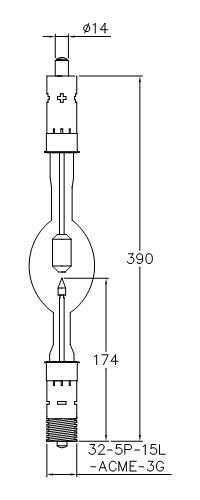

Anode (+) Base Ø - Pin Ø or Thread (mm) - 32-14
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 32-32-5p-15L-ACME-3G

Cross Reference

LTI - LTIX-4000W-XT


XM4000-7HS/G replacement for LTIX-4000W-XT
Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
