XM2500HS/R

ASL XM2500HS/R is a analog short-arc lamp suitable for use in the following projectors: SPACE CANNON ILLUMINATION 2.5kW, STRONG INTERNATIONAL Gladiator II.

Replacement for LTI LTIX-2500W-HS, OSRAM XBO 2500W/HS OFR, Christie CXL-25SC, USHIO UXL-25SC, Yumex YXL-25SC, Superior Quartz SX25001

Warranty/Life

Warranty: 2000h

Technical specification

Power (W) - 2500
Rated Current (A.D.C.) - 100
Voltage (V.D.C.) - 25
Current Control Range (A.D.C.) - 90-105
Average Lumen Output (Lm) - 100000
Burning Position - H±20° V±20°
Forced Air Cooling (m/sec.) - 10-13

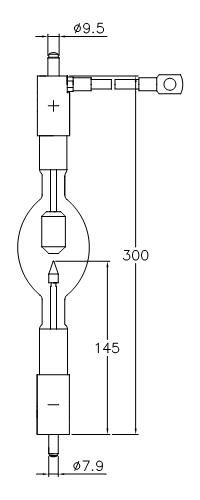

Anode (+) Base Ø - Pin Ø or Thread (mm) - 27-9.5
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 27-7.9

Cross Reference

LTI - LTIX-2500W-HS
OSRAM - XBO 2500W/HS OFR
Christie - CXL-25SC
USHIO - UXL-25SC
Yumex - YXL-25SC
Superior Quartz - SX25001

Projector Reference

SPACE CANNON ILLUMINATION 2.5kW
STRONG INTERNATIONAL Gladiator II


XM2500HS/R replacement for LTIX-2500W-HS, XBO 2500W/HS OFR, CXL-25SC, UXL-25SC, YXL-25SC, SX25001
Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
