XM2000SN/R

ASL XM2000SN/R is a analog short-arc lamp suitable for use in the following projectors: NEC SX10000D.

Replacement for USHIO UXL-20SN

Warranty/Life

Warranty: 1600h

Technical specification

Power (W) - 1625
Rated Current (A.D.C.) - 65
Voltage (V.D.C.) - 25
Current Control Range (A.D.C.) - 50-70
Average Lumen Output (Lm) - 63000
Burning Position - H±20° V±20°
Forced Air Cooling (m/sec.) - 7-10

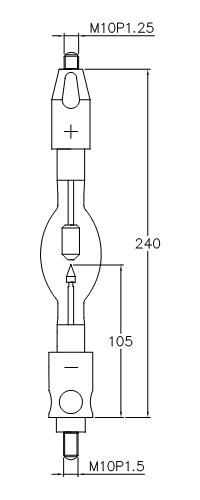

Anode (+) Base Ø - Pin Ø or Thread (mm) - 26.5-M10P1.25
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 30-M10P1.5

Cross Reference

USHIO - UXL-20SN

Projector Reference

NEC SX10000D


XM2000SN/R replacement for UXL-20SN
Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
