XM2000AZ/R

ASL XM2000AZ/R - analog short-arc lamp.

Warranty/Life

Technical specification

Power (W) - 1430
Rated Current (A.D.C.) - 65
Voltage (V.D.C.) - 22
Current Control Range (A.D.C.) - 50-70
Average Lumen Output (Lm) - 53000
Burning Position - H±20° V±20°
Forced Air Cooling (m/sec.) - 7-10

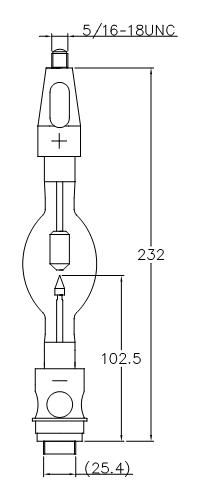

Anode (+) Base Ø - Pin Ø or Thread (mm) - 26.5-5/16-18UNC-2A
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 30 - (25.4)

Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
