XM2000-13HS/G

ASL XM2000-13HS/G - analog short-arc lamp.

Warranty/Life

Technical specification

Power (W) - 2000
Rated Current (A.D.C.) - 80
Voltage (V.D.C.) - 24
Current Control Range (A.D.C.) - 70-85
Average Lumen Output (Lm) - 80000
Burning Position - H±20° V±20°
Forced Air Cooling (m/sec.) - 7-10

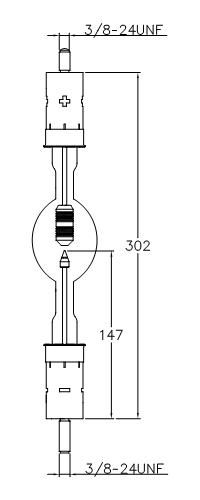

Anode (+) Base Ø - Pin Ø or Thread (mm) - 32-3/8-24UFN-2A
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 32-3/8-24UFN-2A


XM2000-13HS/G
Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
