XM1600H/VCC/G
ASL XM1600H/VCC/G - analog short-arc lamp.
Warranty/Life
Warranty: 2600hTechnical specification
Power (W) - 1600Rated Current (A.D.C.) - 65
Voltage (V.D.C.) - 24
Current Control Range (A.D.C.) - 45-75
Average Lumen Output (Lm) - 60000
Burning Position - H±20° V±20°
Forced Air Cooling (m/sec.) - 4-6

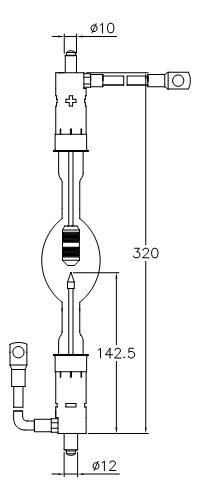

Anode (+) Base Ø - Pin Ø or Thread (mm) - 27-10
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 27-12
