XM1600-41HS/R

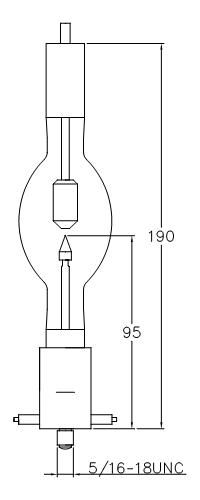

ASL XM1600-41HS/R - analog short-arc lamp.

Warranty/Life

Technical specification

Power (W) - 1500
Rated Current (A.D.C.) - 65
Voltage (V.D.C.) - 23
Current Control Range (A.D.C.) - 50-70
Average Lumen Output (Lm) - 53000
Burning Position - H±20°
Forced Air Cooling (m/sec.) - 4-6
Anode (+) Base Ø - Pin Ø or Thread (mm) - 0
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 25-5/16-18UNC-2A

Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
