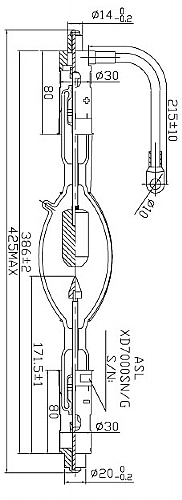

XD7000SN/G

ASL XD7000SN/G is a digital short-arc lamp suitable for use in the following projectors: NEC NC2500S, NEC NC3200S, NEC NC3240S 4kW, NEC NC3240S 7kW.

Replacement for LTI XDC-7000N, USHIO DXL-70SN

Warranty/Life

Warranty: 300h

Technical specification

Power (W) - 7000
Rated Current (A.D.C.) - 170
Voltage (V.D.C.) - 41
Current Control Range (A.D.C.) - 120-175
Average Lumen Output (Lm) - 355000
Burning Position - H±15° V±15°
Forced Air Cooling (m/sec.) - 10-13
Anode (+) Base Ø - Pin Ø or Thread (mm) - 14
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 20

Cross Reference

LTI - XDC-7000N
USHIO - DXL-70SN

Projector Reference

NEC NC2500S
NEC NC3200S
NEC NC3240S 4kW
NEC NC3240S 7kW


XD7000SN/G replacement for XDC-7000N, DXL-70SN
Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
