XD6000HP/G

ASL XD6000HP/G is a digital short-arc lamp suitable for use in the following projectors: BARCO DP2K-32B, BARCO DP4K-32B, BARCO DP-90, BARCO DP-100, BARCO DP-3000, BARCO HDQ-4K35, KINOTON DCP 30, KINOTON DCP 30 LX II - 4K, KINOTON DCP 30 MX II, KINOTON DCP 30 MX II-2/4K.

Replacement for LTI LTIX-6000W-DB, OSRAM XBO 6000W/HSLA OFR & XBO 6000W/DHP, Christie CDXL-60SC, USHIO DXL-60BAF & DXL-60BA2, Superior Quartz SX60003

Warranty/Life

Warranty: 700h

Technical specification

Power (W) - 6000
Rated Current (A.D.C.) - 170
Voltage (V.D.C.) - 35
Current Control Range (A.D.C.) - 120-175
Average Lumen Output (Lm) - 250000
Burning Position - H±15° V±15°
Forced Air Cooling (m/sec.) - 10-13

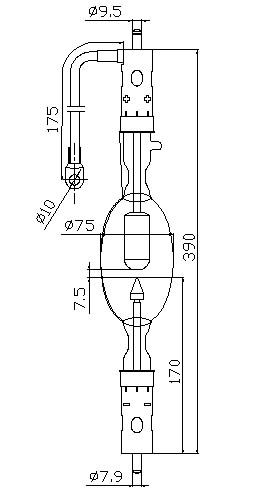

Anode (+) Base Ø - Pin Ø or Thread (mm) - 30-9.5
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 30-7.9

Cross Reference

LTI - LTIX-6000W-DB
OSRAM - XBO 6000W/HSLA OFR & XBO 6000W/DHP
Christie - CDXL-60SC
USHIO - DXL-60BAF & DXL-60BA2
Superior Quartz - SX60003

Projector Reference

BARCO DP2K-32B
BARCO DP4K-32B
BARCO DP-90
BARCO DP-100
BARCO DP-3000
BARCO HDQ-4K35
KINOTON DCP 30, KINOTON DCP 30 LX II - 4K, KINOTON DCP 30 MX II, KINOTON DCP 30 MX II-2/4K

XD6000HP/G replacement for LTIX-6000W-DB, XBO 6000W/HSLA OFR & XBO 6000W/DHP, CDXL-60SC, DXL-60BAF & DXL-60BA2, SX60003

Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
