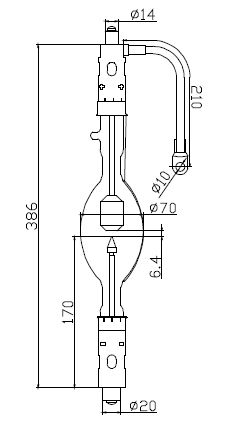

XD4500SN/G

ASL XD4500SN/G is a digital short-arc lamp suitable for use in the following projectors: NEC NC2500S, NEC NC3200S, NEC NC3240S 4kW, NEC NC3240S 7kW.

Replacement for LTI LTIX-4500W-DN & XDC-4500N, OSRAM XBO 4500W/HPN, USHIO DXL-45SN

Warranty/Life

Warranty: 1000h

Technical specification

Power (W) - 4500
Rated Current (A.D.C.) - 145
Voltage (V.D.C.) - 31
Current Control Range (A.D.C.) - 80-150
Average Lumen Output (Lm) - 195000
Burning Position - H±15° V±15°
Forced Air Cooling (m/sec.) - 10-13

Cross Reference

LTI - LTIX-4500W-DN & XDC-4500N
OSRAM - XBO 4500W/HPN
USHIO - DXL-45SN

Projector Reference

NEC NC2500S
NEC NC3200S
NEC NC3240S 4kW
NEC NC3240S 7kW


XD4500SN/G replacement for LTIX-4500W-DN & XDC-4500N, XBO 4500W/HPN, DXL-45SN
Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
