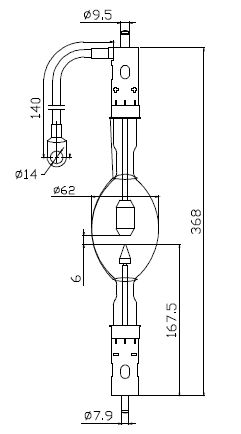

XD4500HP/G

ASL XD4500HP/G is a digital short-arc lamp suitable for use in the following projectors: BARCO DP2K-32B, BARCO DP4K-32B, BARCO DP-90, BARCO DP-100, BARCO DP-3000, BARCO HDQ-4K35, CINEMECCANICA CMC3 D2, CINEMECCANICA CMC4, CINEMECCANICA DPC-30, CINEMECCANICA DPC-70, CINEMECCANICA DPC-80, KINOTON DCP 30, KINOTON DCP 30 LX II - 4K, KINOTON DCP 30 MX II, KINOTON DCP 30 MX II-2/4K, KINOTON DP 70.

Replacement for LTI XDC-4500B

Warranty/Life

Warranty: 1100h

Technical specification

Power (W) - 4500
Rated Current (A.D.C.) - 145
Voltage (V.D.C.) - 30
Current Control Range (A.D.C.) - 100-150
Average Lumen Output (Lm) - 195000
Burning Position - H±15° V±15°
Forced Air Cooling (m/sec.) - 10-13

Cross Reference

LTI - XDC-4500B

Projector Reference

BARCO DP2K-32B
BARCO DP4K-32B
BARCO DP-90
BARCO DP-100
BARCO DP-3000
BARCO HDQ-4K35
CINEMECCANICA CMC3 D2
CINEMECCANICA CMC4
CINEMECCANICA DPC-30
CINEMECCANICA DPC-70
CINEMECCANICA DPC-80
KINOTON DCP 30
KINOTON DCP 30 LX II - 4K
KINOTON DCP 30 MX II
KINOTON DCP 30 MX II-2/4K
KINOTON DP 70
