XD3000PSD/R

ASL XD3000PSD/R is a digital short-arc lamp suitable for use in the following projectors: CHRISTIE Mirage HD20K-J, CHRISTIE Mirage S+22K-J, CHRISTIE Mirage WU20K-J, CHRISTIE Roadster HD18K, CHRISTIE Roadster/Mirage S+16K, CHRISTIE Roadster/Mirage S+20K.

Replacement for USHIO PXL-30SD

Warranty

100% Credit: 0-600

Technical specification

Power (W) - 3000
Rated Current (A.D.C.) - 100
Voltage (V.D.C.) - 30
Current Control Range (A.D.C.) - 70-105
Average Lumen Output (Lm) - 150000
Burning Position - H±15° V±15°
Forced Air Cooling (m/sec.) - 7-10

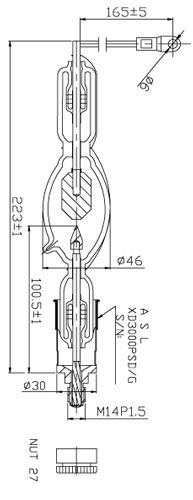

Anode (+) Base Ø - Pin Ø or Thread (mm) - 30-14
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 32-20

Cross Reference

USHIO - PXL-30SD

Projector Reference

CHRISTIE Mirage HD20K-J
CHRISTIE Mirage S+22K-J
CHRISTIE Mirage WU20K-J
CHRISTIE Roadster HD18K
CHRISTIE Roadster/Mirage S+16K
CHRISTIE Roadster/Mirage S+20K
