XD3000HPS/G

ASL XD3000HPS/G is a digital short-arc lamp suitable for use in the following projectors: SONY SRX-R210, SONY SRX-R220 & R220P, SONY SRX-R220 4k CineAlta, SONY SRX-R320 & R320P, SONY SRX-R320 4k CineAlta.

Replacement for LTI XDC-3000S, OSRAM XBO 3000W/HPS OFR, USHIO PXL-30SS & DXL-30SRX

Warranty/Life

Warranty: 1100h

Technical specification

Power (W) - 3000
Rated Current (A.D.C.) - 100
Voltage (V.D.C.) - 30
Current Control Range (A.D.C.) - 85-110
Average Lumen Output (Lm) - 150000
Burning Position - H±15° V±15°
Forced Air Cooling (m/sec.) - 7-10

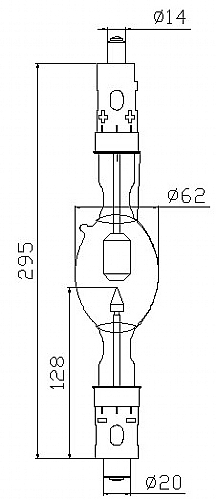

Anode (+) Base Ø - Pin Ø or Thread (mm) - 30-14
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 32-20

Cross Reference

LTI - XDC-3000S
OSRAM - XBO 3000W/HPS OFR
USHIO - PXL-30SS & DXL-30SRX

Projector Reference

SONY SRX-R210
SONY SRX-R220 & R220P
SONY SRX-R220 4k CineAlta
SONY SRX-R320 & R320P
SONY SRX-R320 4k CineAlta

XD3000HPS/G replacement for XDC-3000S, XBO 3000W/HPS OFR, PXL-30SS & DXL-30SRX
