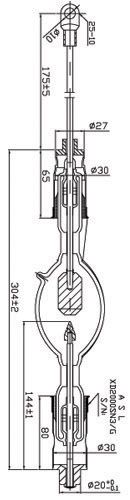

XD2000SN3/G

ASL XD2000SN3/G is a digital short-arc lamp suitable for use in the following projectors: NEC NC1200C, NEC NC1600C, NEC NC2000C.

Replacement for OSRAM XBO 2000W/HPN, USHIO DXL-20SN3

Warranty/Life

Warranty: 2700h

Technical specification

Power (W) - 2000
Rated Current (A.D.C.) - 75
Voltage (V.D.C.) - 26
Current Control Range (A.D.C.) - 40-80
Average Lumen Output (Lm) - 85000
Burning Position - H±15° V±15°
Forced Air Cooling (m/sec.) - 7-10
Anode (+) Base Ø - Pin Ø or Thread (mm) - 30-14
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 30-20

Cross Reference

OSRAM - XBO 2000W/HPN
USHIO - DXL-20SN3

Projector Reference

NEC NC1200C
NEC NC1600C
NEC NC2000C


XD2000SN3/G replacement for XBO 2000W/HPN, DXL-20SN3
Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
