XD2000HPS/G

ASL XD2000HPS/G is a digital short-arc lamp suitable for use in the following projectors: SONY SRX-R210, SONY SRX-R220 & R220P, SONY SRX-R220 4k CineAlta, SONY SRX-R320 & R320P, SONY SRX-R320 4k CineAlta.

Replacement for LTI XDC-2000S, OSRAM XBO 2000W/HPS OFR, USHIO DXL-20SRX

Warranty/Life

Warranty: 0-2400h

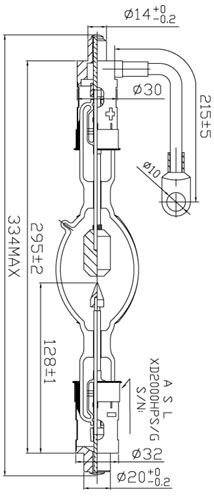

Technical specification

Power (W) - 2000
Rated Current (A.D.C.) - 80
Voltage (V.D.C.) - 25
Current Control Range (A.D.C.) - 50-85
Average Lumen Output (Lm) - 90000
Burning Position - H±15° V±15°
Forced Air Cooling (m/sec.) - 7-10
Anode (+) Base Ø - Pin Ø or Thread (mm) - 30-14
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 32-20

Cross Reference

LTI - XDC-2000S
OSRAM - XBO 2000W/HPS OFR
USHIO - DXL-20SRX

Projector Reference

SONY SRX-R210
SONY SRX-R220 & R220P
SONY SRX-R220 4k CineAlta
SONY SRX-R320 & R320P
SONY SRX-R320 4k CineAlta

XD2000HPS/G replacement for XDC-2000S, XBO 2000W/HPS OFR, DXL-20SRX

Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
