XD1800SD/G

ASL XD1800SD/G is a digital short-arc lamp suitable for use in the following projectors: CHRISTIE CP2000-M, CHRISTIE CP2210, CHRISTIE CP2215, CHRISTIE Solaria One/One+.

Replacement for Christie CDXL-18SD

Warranty/Life

Warranty: 1750h

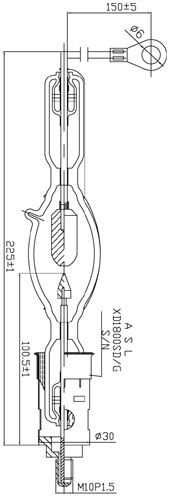

Technical specification

Power (W) - 1800
Rated Current (A.D.C.) - 75
Voltage (V.D.C.) - 24.5
Current Control Range (A.D.C.) - 40-80
Average Lumen Output (Lm) - 70000
Burning Position - H±15° V±15°
Forced Air Cooling (m/sec.) - 7-10
Anode (+) Base Ø - Pin Ø or Thread (mm) - -
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 30-M10P1.5

Cross Reference

Christie - CDXL-18SD

Projector Reference

CHRISTIE CP2000-M
CHRISTIE CP2210
CHRISTIE CP2215
CHRISTIE Solaria One/One+


XD1800SD/G replacement for CDXL-18SD
Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
