XD1200HP/G

ASL XD1200HP/G is a digital short-arc lamp suitable for use in the following projectors: BARCO DP2K-8S, BARCO DP2K-10S, BARCO DP2K-10Sx, 10SZ, BARCO DP2K-12C, BARCO DP2K-15C, BARCO DP2K-19B, BARCO DP2K-20C, BARCO DP2K-23B, BARCO DP2K-P, BARCO DP4K-19B, BARCO DP4K-23B, BARCO DP4K-P, BARCO DP-1200, BARCO DP-1500, BARCO DP-2000, BARCO HDF-W22, BARCO HDF-W26.

Replacement for OSRAM XBO 1200W/DHP, USHIO DXL-12BAF

Warranty/Life

Warranty: 3000h

Technical specification

Power (W) - 1200
Rated Current (A.D.C.) - 60
Voltage (V.D.C.) - 20
Current Control Range (A.D.C.) - 35-65
Average Lumen Output (Lm) - 45000
Burning Position - H±15° V±15°
Forced Air Cooling (m/sec.) - 4-6

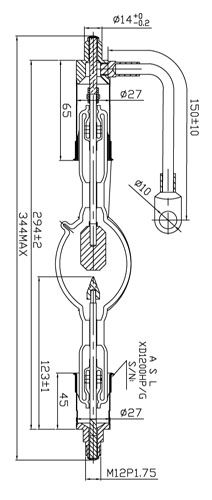

Anode (+) Base Ø - Pin Ø or Thread (mm) - 27-14
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 27-M12P1.75

Cross Reference

OSRAM - XBO 1200W/DHP
USHIO - DXL-12BAF

Projector Reference

BARCO DP2K-8S
BARCO DP2K-10S
BARCO DP2K-10Sx, 10SZ
BARCO DP2K-12C
BARCO DP2K-15C
BARCO DP2K-19B
BARCO DP2K-20C
BARCO DP2K-23B
BARCO DP2K-P
BARCO DP4K-19B
BARCO DP4K-23B
BARCO DP4K-P
BARCO DP-1200
BARCO DP-1500
BARCO DP-2000
BARCO HDF-W22*
BARCO HDF-W26*

* adapter required

XD1200HP/G replacement for XBO 1200W/DHP, DXL-12BAF

Specs subject to change without notice. All trademarks, service marks, trade names and product names appearing on this page are the property of their respective owners.
