XM3000H/VCC/G

Warranty

100% Credit: 0-2050

Technical specification

Power (W) - 3000
Rated Current (A.D.C.) - 100
Voltage (V.D.C.) - 29
Current Control Range (A.D.C.) - 80-110
Average Lumen Output (Lm) - 113000
Burning Position - H±20° V±20°
Forced Air Cooling (m/sec.) - 10-13

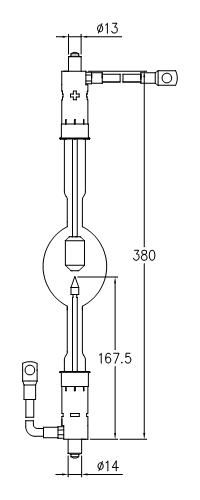

Anode (+) Base Ø - Pin Ø or Thread (mm) - 27-13
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 27-14

Cross Reference

LTI - LTIX-3000W-HC
Christie - CXL-30R

XM3000H/VCC/G

Specs subject to change without notice.
