XM2000HS/G
Warranty
100% Credit: 0/2700Technical specification
Power (W) - 2000Rated Current (A.D.C.) - 80
Voltage (V.D.C.) - 24
Current Control Range (A.D.C.) - 50-85
Average Lumen Output (Lm) - 80000
Burning Position - H±20°
Forced Air Cooling (m/sec.) - 7-10

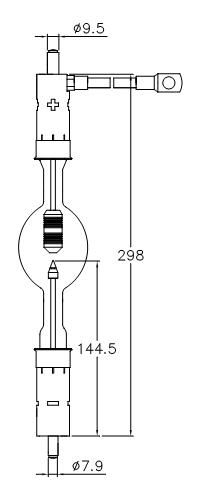

Anode (+) Base Ø - Pin Ø or Thread (mm) - 27-9.5
Cathode (-) Base Ø - Pin Ø or Thread (mm) - 27-7.9
Cross Reference
LTI - LTIX-2000W-HSOSRAM - XBO 2000W/HS OFR
Christie - CXL-20SC
USHIO - UXL-20SC
Yumex - YXL-20SC
Superior Quartz - SX20003
Projector Reference
L.P. ASSOCIATES 2KW Sky DancerL.P. ASSOCIATES 2KW XELAMP Architectural Spotlight
LYCIAN STAGE LIGHTING Lycian 1290 XLT
PHOEBUS MANUFACTURING Silverbeam PSL-14 2K Xenon
PHOEBUS MANUFACTURING Silverbeam 360 2KW
SYNCROLITE ENTERTAINMENT TECHNOLOGY SX2K
